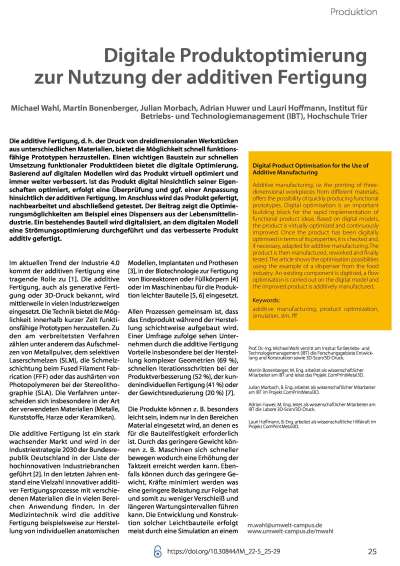

Digital Product Optimisation for the Use of Additive Manufacturing |
| Journal | Industrie 4.0 Management |
| Issue | Volume 38, 2022, Edition 5, Pages 25-29 |
| Open Access | https://doi.org/10.30844/IM_22-5_25-29 |
| Bibliography | Share | Cite | Download |
Abstract
Additive manufacturing, i.e. the printing of three- dimensional workpieces from different materials, offers the possibility of quickly producing functional prototypes. Digital optimisation is an important building block for the rapid implementation of functional product ideas. Based on digital models, the product is virtually optimised and continuously improved. Once the product has been digitally optimised in terms of its properties, it is checked and, if necessary, adapted for additive manufacturing. The product is then manufactured, reworked and finally tested. The article shows the optimisation possibilities using the example of a dispenser from the food industry. An existing component is digitised, a flow optimisation is carried out on the digital model and the improved product is additively manufactured.
Keywords
Bibliography
[1] te Heesen, H.; Wahl, M.; Messemer, J.; Bremer, M.; Huwer, A.: Heterogene Einsatzfelder der generativen Fertigung. Industrie 4.0 Management 36 (2020) 4, S. 25-29. https://doi.org/10.30844/I40M_20-1_S25-29[2] BMWi: Industriestrategie 2030 Leitlinien für eine deutsche und europäische Industriepolitik, Bundesministerium für Wirtschaft und Energie (BMWi), 2019, URL: www.bmwk.de/Redaktion/DE/Publikationen/Industrie/industriestrategie-2030.pdf?__blob=publicationFile, Abrufdatum 30.05.2022.
[3] Abdulhameed, O.; Al-Ahmari, A.; Ameen, W.; Mian, S. H.: Additive manufacturing: Challenges, trends, and applications. Advances in Mechanical Engineering 11 (2019) 2, https://doi.org/10.1177/1687814018822880.
[4] Scherer, K.; Soerjawinata, W.; Schaefer, S.; Kockler, I.; Ulber, R.; Lakatos, M.; Bröckel, U.; Kampeis, P.; Wahl, M.: Influence of wettability and surface design on the adhesion of terrestrial cyanobacteria to additive manufactured biocarriers., Bioprocess Biosyst. Eng., 2022, DOI 10.1007/s00449-022-02712-0.
[5] Gutiérrez-Moizant, R.; Ramírez-Berasategui, M.; Calvo, J. A. u. a.: Validation and improvement of a bicycle crank arm based in numerical simulation and uncertainty quantification. Sensors (Switzerland); 20. Epub ahead of print 2020. DOI: 10.3390/s20071814.
[6] Hoffmann, L.; Brinkmann, J. ; Huwer, A.; Wahl, M.; te Heesen, H.: Praxisorientierte Konstruktion in der additiven Fertigung: Anwendung der Konstruktionsmethodik am Beispiel eines E-Scooters. In: ZWF Zeitschrift für Wirtschaftlichen Fabrikbetrieb (2022), DOI:10.1515/zwf-2022-1013.
[7] Sculpteo: The State of 3D Printing Report: 2021, ID 1168645.
[8] Keferstein; C. P.; Marxer, M.: Fertigungsmesstechnik. Wiesbaden 2015. ISBN 978-3-658-34167-1
[9] Geng, J.: Structured-light 3D surface imaging: a tutorial. Adv. Opt. Photon. 3, 128-160 (2011). https://doi.org/10.1364/AOP.3.000128.
[10] Bremer, M; Wahl, M.; Slawomir, K.: Einfluss einer zusätzlichen Glasscheibe auf ein optisches 3D-Messsystem. tm – Technisches Messen 87 (2020) 7-8, S. 477-494; DOI: 10.1515/teme-2019-0105.
